【TDengine 使用环境】
生产环境 /测试/ Poc/预生产环境
【TDengine 版本】
3.4
【操作系统以及版本】
centos7
【部署方式】容器/非容器部署
非容器部署
【集群节点数】
5
【集群副本数】
【描述业务影响】
【问题复现路径/shan】做过哪些操作出现的问题
【遇到的问题：问题现象及影响】
【资源配置】
【报错完整截图】（不要大段的粘贴报错代码，论坛直接看报错代码不直观）
客户端性能没有问题，但是服务端cpu高，全是物理机部署，五台24c256g的物理机的集群，上面没有其他组件
有如下几个方面可以参考
1. 排查并调整写入批次大小（最常见原因）
无模式写入如果每条或少量几条记录就发送一次HTTP/UDP请求，网络和解析开销会非常大，导致CPU飙升。
- 优化参数/策略：在客户端侧，将多条记录打包成一个请求发送。建议单次请求大小在 1MB 左右或包含 3000-5000 条记录。这是提升吞吐量、降低CPU最直接有效的方法。
2. 调整服务端核心参数（taos.cfg）
numOfCommitThread (落盘线程)
-
作用：控制数据从内存写入磁盘的线程数。
-
调优建议：如果CPU高且写入延迟不稳定，可以适当调高，例如设置为 8-16（根据CPU核心数）。
3. 数据库创建参数的调整
stt_trigger (处理小批量写入合并)
-
作用：无模式写入往往产生大量小的、不规则的写入，此参数控制内存中“小文件合并”的触发时机。
-
调优建议：适当调高此值（例如从默认的1调到 8或16），可以让更多小写入在内存中合并后再落盘，减少磁盘碎片和CPU开销。
buffer (写入缓存大小)
-
作用：每个VNode的写入缓存。您提到调整后内存没变，可能是数值设置仍偏小或未重启。
-
调优建议：在内存充裕的前提下（总256G，使用9G），可以将每个VNode的
buffer从默认的256MB提升至 512MB或1GB。这能有效吸收写入高峰，减少缓存写满导致的背压和CPU上下文切换。

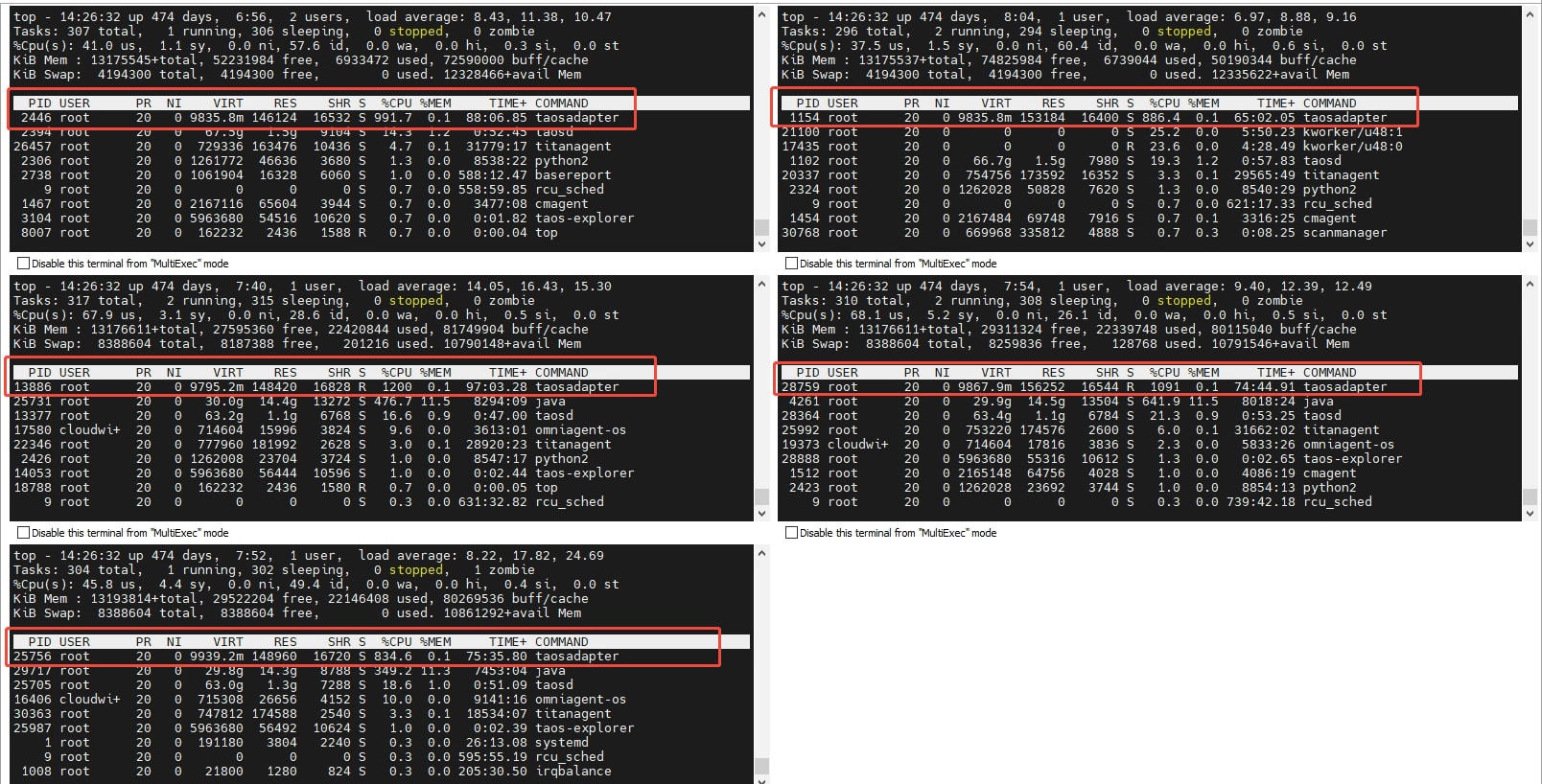

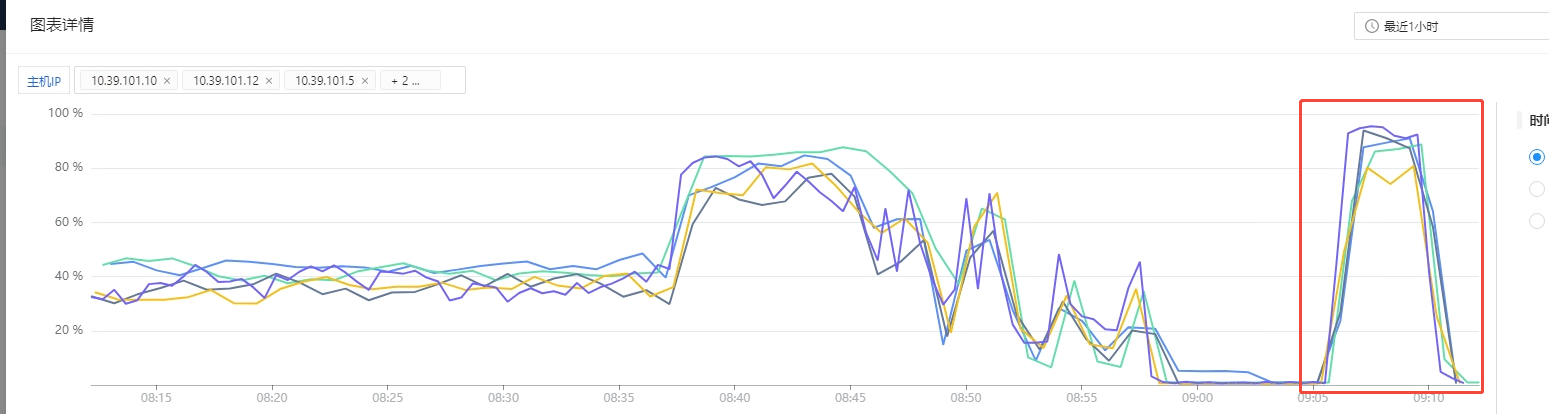

感谢，麻烦再帮我参考一下；我经过反复测试，sql写8w每秒都没问题，但是无模式写入直接cpu就80%，而且写入速度只有4-8k/s,看服务端显示是taosadapter cpu占比很高
我无模式写入的那个数据库，设置了60个vgroup,buffer设置成4096了；落盘线程设置的是20个
无模式写入每次是200条数据一批，写入
taosadapter.toml 这个配置文件是否有可以参数调优的优化空间
我使用的是默认配置taosadapter.toml
taosadapter.toml 的参数修改成如下：
连接池配置
[http]
max_open_conns = 1024 # 最大并发连接数，默认可能偏小，建议1024或更高
idle_timeout = 300 # 连接空闲超时(秒)
无模式写入相关配置
[sml]
worker = 20 # 处理无模式写入的工作线程数，您有5台24核机器，可设20-40
batchSize = 10000 # 单批次最大处理记录数，建议10000
flushInterval = “5s” # 刷新间隔
通用配置
log_level = “warn” # 减少日志输出，日志过多会显著影响性能
worker，batchSize，flushInterval这三个参数有；其他的参数我那配置文件里面都没有；
我是3.4版本的开源版；这正常吗？我先把这些参数都放到taosadapter.toml试一下；
其他配置加了启动不了；我先改这些看看worker，batchSize，flushInterval；重启了taosadapter
Enable pprof debug mode. If set to true, pprof debugging is enabled.
debug = true
The directory where TDengine’s configuration file (taos.cfg) is located.
taosConfigDir = “/etc/taos”
The port on which the server listens.
port = 6041
When the server returns an error, use a non-200 HTTP status code if set to true.
httpCodeServerError = false
Automatically create the database when writing data with the schemaless feature if set to true.
smlAutoCreateDB = false
Instance ID of the taosAdapter.
instanceId = 32
The maximum number of concurrent calls allowed for the C synchronized method.0 means use CPU core count.
#maxSyncConcurrentLimit = 0
The maximum number of concurrent calls allowed for the C asynchronous method. 0 means use CPU core count.
#maxAsyncConcurrentLimit = 0
List of SQL Reject patterns. If a SQL statement matches any of these patterns, it will be rejected.
#rejectQuerySqlRegex = [‘(?i)^drop\s+database\s+.‘,’(?i)^alter\s+table\s+.’,‘(?i)^select\s+.from\s+testdb.’]
[register]
The address of this taosAdapter instance. eg: “192.168.1.100:6041” or “https://192.168.1.100:6041” if SSL enabled.
#instance = “tdpro05.zoomlion.com:6041”
The description of this taosAdapter instance.
#description = “”
The registration duration (in seconds). After this duration, the instance will be re-register.
#duration = 10
The expiration duration (in seconds). If the instance is not re-registered within this duration, it will be expired. Could not be less than duration.
#expire = 30
[request]
Enable query limiting. If set to true, query limiting is enabled.
#queryLimitEnable = false
List of SQL statements that are exempt from query limiting.
#excludeQueryLimitSql = [“select 1”,“select server_version()”]
List of regex patterns for SQL statements that are exempt from query limiting.
#excludeQueryLimitSqlRegex = [‘(?i)^select\s+.from\s+information_schema.’]
Default query limits for users not explicitly defined in the configuration.
[request.default]
Default maximum number of rows returned by a query. 0 means no limit.
queryLimit = 0
Default maximum time (in seconds) a query can wait for execution.
queryWaitTimeout = 900
Default maximum number of queries that can wait for execution. 0 means no limit.
queryMaxWait = 0
Example of user-specific query limits. You can define multiple users with different limits.
#[request.users.root]
#queryLimit = 100
#queryWaitTimeout = 200
#queryMaxWait = 10
[cors]
If set to true, allows cross-origin requests from any origin (CORS).
allowAllOrigins = true
[pool]
The maximum number of connections to the server. If set to 0, use cpu count * 2.
maxConnect = 0
The maximum number of idle connections to the server. Should match maxConnect.
maxIdle = 0
The maximum number of connections waiting to be established. 0 means no limit.
maxWait = 0
Maximum time to wait for a connection. 0 means no timeout.
waitTimeout = 60
[ssl]
Enable SSL. Applicable for the Enterprise Edition.
enable = false
certFile = “”
keyFile = “”
[log]
The directory where log files are stored.
path = “/var/log/taos”
The log level. Options are: trace, debug, info, warning, error.
level = “warning”
Number of log file rotations before deletion.
rotationCount = 30
The number of days to retain log files.
keepDays = 30
The maximum size of a log file before rotation.
rotationSize = “1GB”
If set to true, log files will be compressed.
compress = false
Minimum disk space to reserve. Log files will not be written if disk space falls below this limit.
reservedDiskSize = “1GB”
Enable logging of SQL via HTTP and WebSocket requests to CSV files.
enableSqlToCsvLogging = false
Deprecated: use enableSqlToCsvLogging instead.
#Enable logging of HTTP SQL queries.
enableRecordHttpSql = false
Deprecated: use enableSqlToCsvLogging instead.
Number of HTTP SQL log rotations before deletion.
sqlRotationCount = 2
Deprecated: use enableSqlToCsvLogging instead.
Time interval for rotating HTTP SQL logs.
sqlRotationTime = “24h”
Deprecated: use enableSqlToCsvLogging instead.
Maximum size of HTTP SQL log files before rotation.
sqlRotationSize = “1GB”
[monitor]
If set to true, disables monitoring.
disable = true
Interval for collecting metrics.
collectDuration = “3s”
Indicates if running inside a Docker container.
incgroup = false
When memory usage reaches this percentage, query execution will be paused.
pauseQueryMemoryThreshold = 70
When memory usage reaches this percentage, both queries and inserts will be paused.
pauseAllMemoryThreshold = 80
The identity of the current instance. If empty, it defaults to ‘hostname:port’.
identity = “”
[uploadKeeper]
Enable uploading of metrics to TaosKeeper.
enable = true
URL of the TaosKeeper service to which metrics will be uploaded.
url = “http://127.0.0.1:6043/adapter_report”
Interval for uploading metrics.
interval = “15s”
Timeout for uploading metrics.
timeout = “5s”
Number of retries when uploading metrics fails.
retryTimes = 3
Interval between retries for uploading metrics.
retryInterval = “5s”
[opentsdb]
Enable the OpenTSDB HTTP plugin.
enable = true
[influxdb]
Enable the InfluxDB plugin.
enable = true
[statsd]
Enable the StatsD plugin.
enable = false
The port on which the StatsD plugin listens.
port = 6044
The database name used by the StatsD plugin.
db = “statsd”
The username used to connect to the TDengine database.
#user = “”
The password used to connect to the TDengine database.
#password = “”
The token used to connect to the TDengine database. Not the cloud token.
#token = “”
The number of worker threads for processing StatsD data.
worker = 20
Interval for gathering StatsD metrics.
gatherInterval = “5s”
The network protocol used by StatsD (e.g., udp4, tcp).
protocol = “udp4”
Maximum number of TCP connections allowed for StatsD.
maxTCPConnections = 250
If set to true, enables TCP keep-alive for StatsD connections.
tcpKeepAlive = false
Maximum number of pending messages StatsD allows.
allowPendingMessages = 50000
If set to true, deletes the counter cache after gathering metrics.
deleteCounters = true
If set to true, deletes the gauge cache after gathering metrics.
deleteGauges = true
If set to true, deletes the set cache after gathering metrics.
deleteSets = true
If set to true, deletes the timing cache after gathering metrics.
deleteTimings = true
[collectd]
Enable the Collectd plugin.
enable = false
The port on which the Collectd plugin listens.
port = 6045
The database name used by the Collectd plugin.
db = “collectd”
The username used to connect to the TDengine database.
#user = “”
The password used to connect to the TDengine database.
#password = “”
The token used to connect to the TDengine database. Not the cloud token.
#token = “”
Number of worker threads for processing Collectd data.
worker = 20
[opentsdb_telnet]
Enable the OpenTSDB Telnet plugin.
enable = false
Maximum number of TCP connections allowed for the OpenTSDB Telnet plugin.
maxTCPConnections = 250
If set to true, enables TCP keep-alive for OpenTSDB Telnet connections.
tcpKeepAlive = false
List of databases to which OpenTSDB Telnet plugin writes data.
dbs = [“opentsdb_telnet”, “collectd”, “icinga2”, “tcollector”]
The ports on which the OpenTSDB Telnet plugin listens, corresponding to each database.
ports = [6046, 6047, 6048, 6049]
The username used to connect to the TDengine database.
#user = “”
The password used to connect to the TDengine database.
#password = “”
The token used to connect to the TDengine database. Not the cloud token.
#token = “”
Batch size for processing OpenTSDB Telnet data.
batchSize = 10000
Interval between flushing data to the database. 0 means no interval.
flushInterval = “5s”
[node_exporter]
Enable the Node Exporter plugin.
enable = false
The database name used by the Node Exporter plugin.
db = “node_exporter”
The username used to connect to the TDengine database.
#user = “”
The password used to connect to the TDengine database.
#password = “”
The token used to connect to the TDengine database. Not the cloud token.
#token = “”
List of URLs to gather Node Exporter metrics from.
urls = [“http://tdpro05.zoomlion.com:9100”]
Timeout for waiting for a response from the Node Exporter plugin.
responseTimeout = “5s”
Username for HTTP authentication, if applicable.
httpUsername = “”
Password for HTTP authentication, if applicable.
httpPassword = “”
Bearer token for HTTP requests, if applicable.
httpBearerTokenString = “”
Path to the CA certificate file for SSL validation.
caCertFile = “”
Path to the client certificate file for SSL validation.
certFile = “”
Path to the client key file for SSL validation.
keyFile = “”
If set to true, skips SSL certificate verification.
insecureSkipVerify = true
Interval for gathering Node Exporter metrics.
gatherDuration = “5s”
[prometheus]
Enable the Prometheus plugin.
enable = true
OpenMetrics Configuration
[open_metrics]
enable = false # Enable OpenMetrics data collection
TDengine connection credentials
The username used to connect to the TDengine database.
#user = “”
The password used to connect to the TDengine database.
#password = “”
The token used to connect to the TDengine database. Not the cloud token.
#token = “”
Database configuration
dbs = [“open_metrics”] # Target database names for OpenMetrics data
Endpoint configuration
urls = [“http://tdpro05.zoomlion.com:9100”] # OpenMetrics endpoints to scrape
Timeout settings
responseTimeoutSeconds = [5] # HTTP response timeout in seconds for OpenMetrics scraping
Authentication methods
httpUsernames = # Basic auth usernames for protected OpenMetrics endpoints
httpPasswords = # Basic auth passwords for protected OpenMetrics endpoints
httpBearerTokenStrings = # Bearer tokens for OpenMetrics endpoint authentication
TLS configuration
caCertFiles = # Paths to CA certificate files for TLS verification
certFiles = # Paths to client certificate files for mTLS
keyFiles = # Paths to private key files for mTLS
insecureSkipVerify = true # Skip TLS certificate verification (insecure)
Collection parameters
gatherDurationSeconds = [5] # Interval in seconds between OpenMetrics scrapes
Data retention
ttl = # Time-to-live for OpenMetrics data (0=no expiration)
Timestamp handling
ignoreTimestamp = false # Use server timestamp instead of metrics timestamps
我的taosadapter.toml
